Project Information
- Name: Customized Water Slide Design
- Category: Analysis & Reporting, 2D drafting, 3D modeling
- Client: HMZ Water Park
- Project Date: May 05, 2024
Project Description

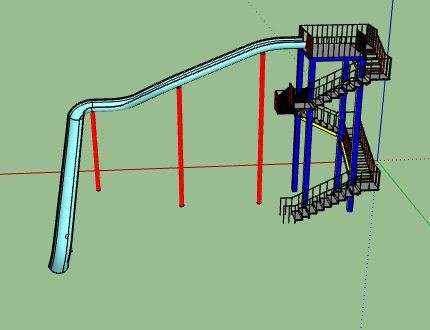

This project involved the customized design of a 40 ft high water slide for HMZ Water Park, delivered to the fabricator and installation contractors for execution as per the provided design. Complete fabrication drawings were prepared using AutoCAD and Autodesk Inventor, ensuring precision through tolerance-based engineering. Services included:
- FEA & Structure Analysis & Reporting
- 2D drafting
- 3D Modeling & Rendering
