Project Information
- Name: Steel based Canopy Design and Fabrication Drawing
- Category: Analysis and Reporting, 2D Drafting, 3D Modeling, All Designs
- Client: Total Parco Filling M-2 South
- Project Date: August 15, 2023
Project Description

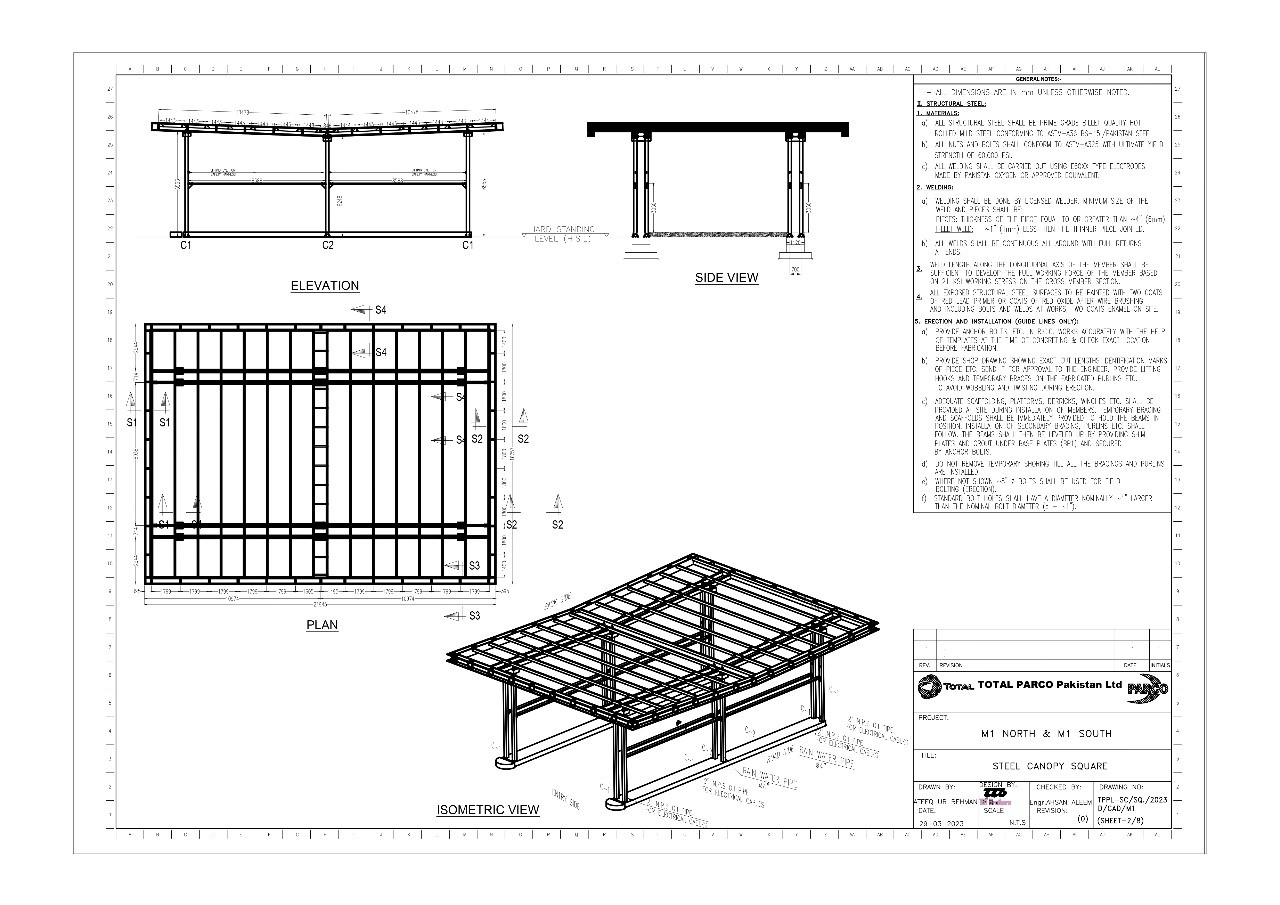

This project comprised detailed fabrication and installation drawings of a dual-column tested steel structure for a Total Parco filling station along the motorway. Developed using AutoCAD, SolidWorks, and Autodesk Inventor, the drawings also featured a complete layout of the roof drainage channels and electrical wiring routes. Services included:
- FEA & Structure Analysis and SAP 2000 Report
- 2D Drafting
- 3D Modeling & Rendering
- Fabrication Drawing
- Mechanical Design (Layout)
- Civil Design (Layout)
- Electrical Design (Layout)
