Project Information
- Name: Oil Heater Illustration
- Category: 2D drafting, 3D modeling
- Client: Samira Fabrics
- Project Date: Feburary 16, 2022
Project Description

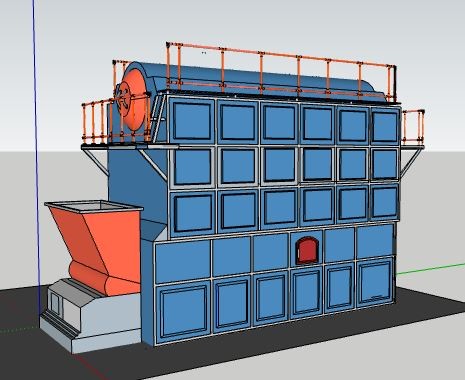

This project was developed for Samira Fabrics to create a visual illustration of a thermal oil heater, designed for equipment that requires heated oil to enhance heat transfer efficiency. The model was created in SolidWorks, complete with all moving components. Services included:
- 2D drafting
- 3D Modeling
- Autodesk Inventor Assembly
