Project Information
- Name: Electric Control Panel
- Category: Analysis and Reporting, 2D Drafting, 3D Modeling
- Client: Sangham Petroleum
- Project Date: September 22, 2023
Project Description

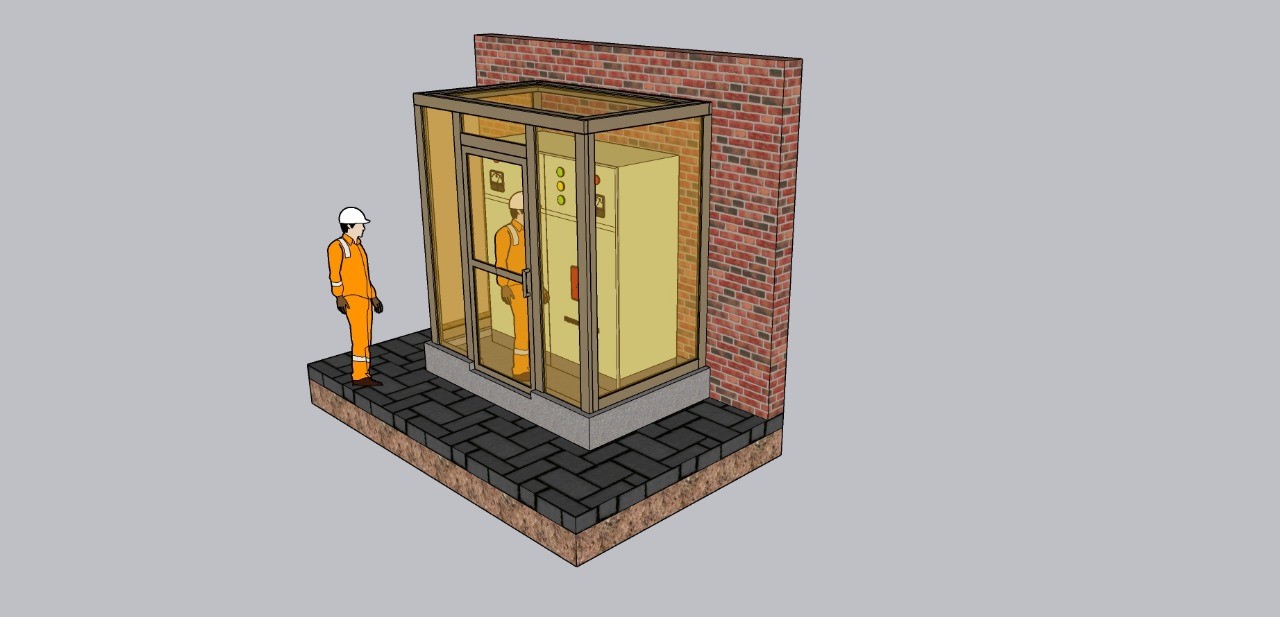

This project involved a complete 3D visualization of the fabricated control panel for a petrol station, showcasing both the internal and external worker provisions. Following the visualization, detailed 2D and 3D fabrication drawings were developed to ensure seamless execution at the client’s end. Services included:
- FEA & Structure Analysis and Reporting
- 2D Drafting
- 3D Modeling & Rendering
- Autodesk Inventor Assembly
